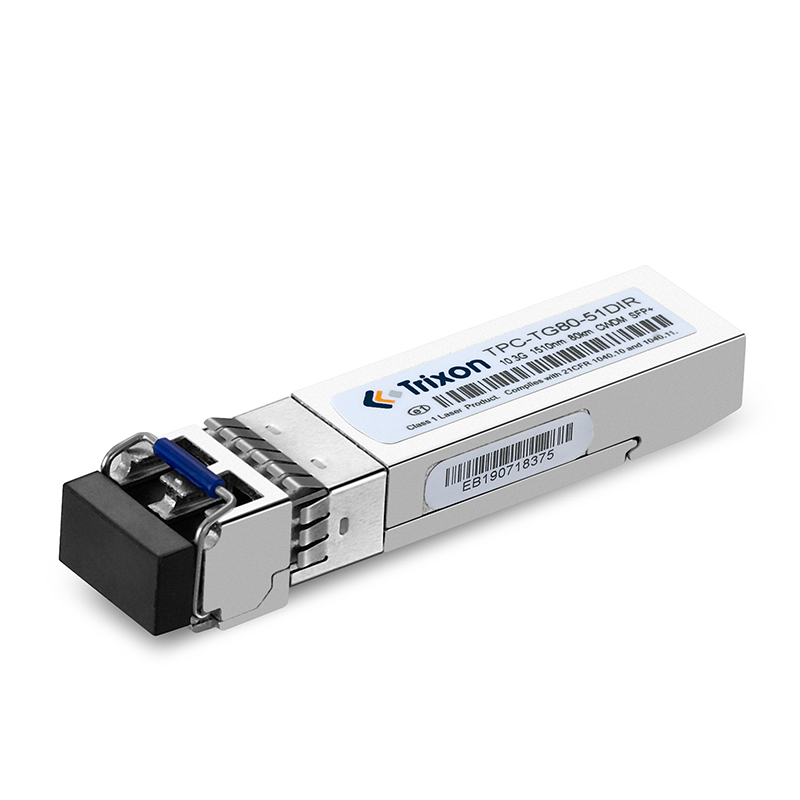

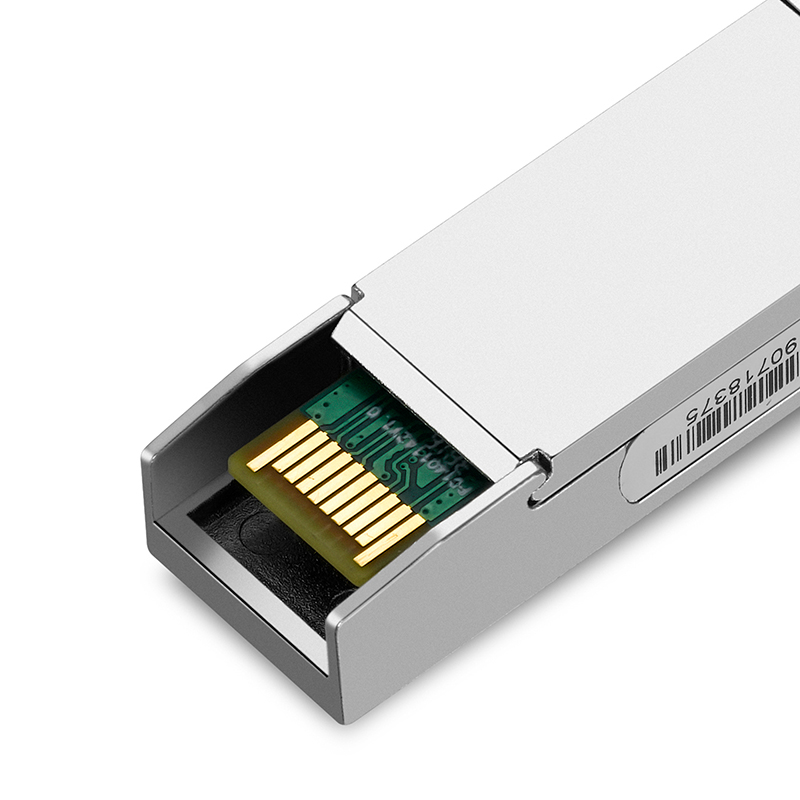

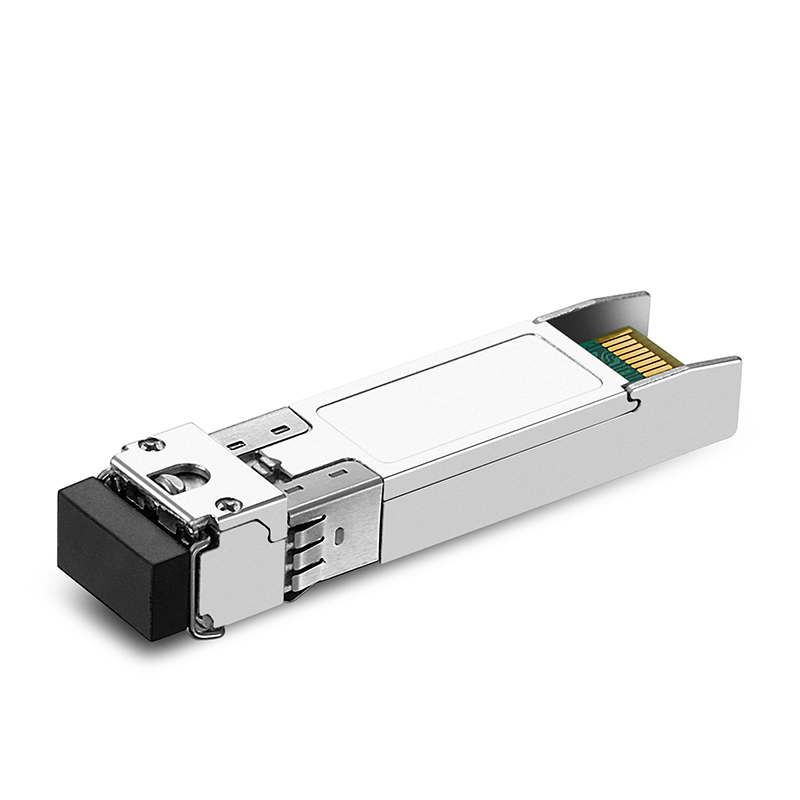

The CWDM SFP+ Series optical transceivers are designed for use in 10G CWDM networks. It’s complying with SFF-8431, SFF-8432, and 10-Gigabit Ethernet IEEE802.3ae .This module is designed for single mode fiber and operates at a nominal wavelength of CWDM wavelength. There are 18 center wavelengths available from 1270nm to 1610nm, with each step 20nm. Digital diagnostics are available via 2-wire serial interface as specified in the SFF-8472. The transceiver is RoHS-6 compliant and lead-free per Directive 2002/95/EC.
More Details(DS210002)
Part No. *Note1 |
Data Rate |
Laser |
Fiber Type |
Link Budget |
Optical |
TEMP |
DDMI |
TPC-TG10-XXDCR | 10.3G | CWDM DFB | SMF | 10dB | LC | C | YES |
TPC-TG10-XXDIR | 10.3G | CWDM DFB | SMF | 10dB | LC | I | YES |
TPC-TG40-XXDCR | 10.3G | CWDM EML
1270~1610nm |
SMF | 16dB | LC | C | YES |
TPC-TG40-XXDIR | 10.3G | CWDM EML
1270~1610nm |
SMF | 16dB | LC | I | YES |
Product Features
- Single 3.3V Power supply and TTL Logic Interface
- Operating data rate at 10.3 Gb/s
- Hot Pluggable SFP+ MSA package
- Compliant with SFF-8431 and SFF-8432
- Compliant with 802.3ae 10GBASE-LR/ER/ZR
- Duplex LC Connector Interface
- Metal enclosure, for lower EMI
- Operating Case Temperature: 0℃ ~+70℃ or -40℃~+85℃
- Class 1 Laser International Safety Standard IEC-60825 compliant
Product Safety and Quality
● FCC TUV UL and Eye safety certification
● ISO9001:2000
● ISO14001:2004
Applications
● 10GBASE-LR 10G Ethernet
● 10GBASE-ER 10G Ethernet
