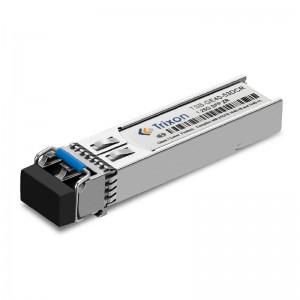

1.25G SFP BIDI

Short Description:

The GBE Bidirectional SFP optical transceivers are high performance, cost effective modules. They offer the customer a range of design options, including optional DDMI, standard or industrial temperature ranges. They are designed to provide Gigabit Ethernet compliant connections for 1.25 Gbps at short, intermediate and long reach links. These transceivers are qualified in accordance with GR-468-CORE. More Details DS100046 Part No. Data Rate Laser Fiber Type Distance*Note1 Opti...


Product Detail

Product Tags

The GBE Bidirectional SFP optical transceivers are high performance, cost effective modules. They offer the customer a range of design options, including optional DDMI, standard or industrial temperature ranges. They are designed to provide Gigabit Ethernet compliant connections for 1.25 Gbps at short, intermediate and long reach links. These transceivers are qualified in accordance with GR-468-CORE.

More Details DS100046

Part No.

Data
Rate

Laser

Fiber
Type

Distance*Note1

Optical
Interface

Bail color

Temp. *Note2

DDMI

TSB-GEM3-35DIR 1.25G 1310nm-FP SMF 300m LC Blue ST YES
TSB-GEM3-53DIR 1.25G 1550nm-FP SMF 300m LC Purple ST YES

Features:

  • Operating data at 1.25 Gbps
  • Distance up to 300m
  • Single 3.3V Power supply and TTL Logic Interface
  • Single LC Connector Interface
  • Hot Pluggable
  • Compliant with MSA SFP Specification SFF-8472
  • Operating Case Temperature
  • Standard: -40℃ ~+85℃

Applications:
● Gigabit Ethernet Switches and Routers
● Fiber Channel Switch
● Other Optical Link
