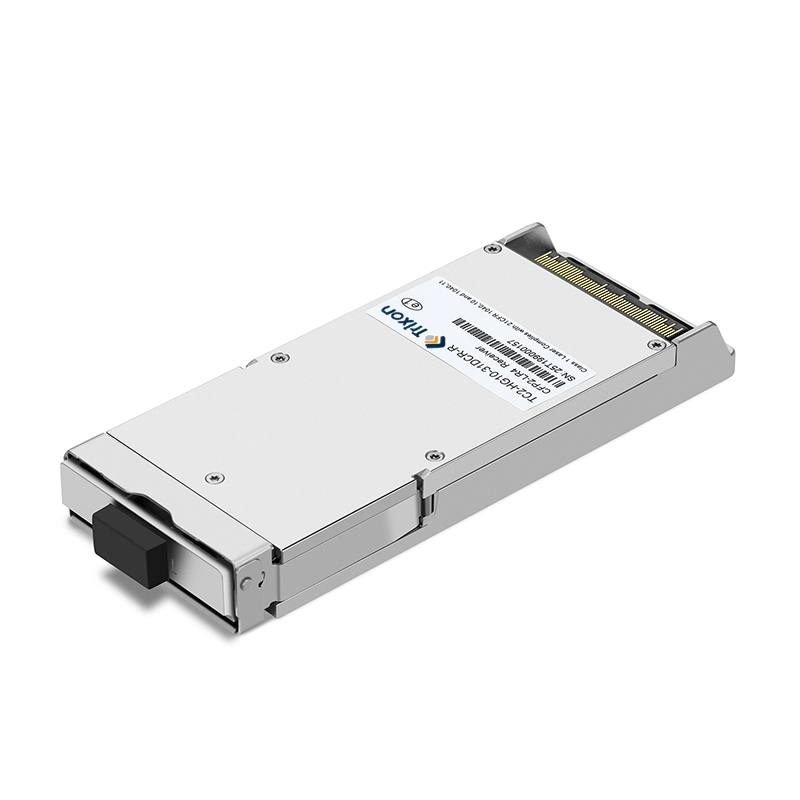

CFP2-LR4 Receiver

Short Description:

TC2-HG10-30DCR-R CFP2 receivers are designed for use in 100 Gigabit Ethernet links over 10km single module fiber, and it compliant to the CFP2 MSA and IEEE 802.3ba 100GBASE-LR4. Digital diagnostics are available via MDIO as specified in the CFP2 MSA Management Interface Specification. The module’s designs are optimized for high performance and cost efficiency to provide customers the best solutions for Datacom and Telecom applications. The transceiver is RoHS-6 compliant and lead-free p...


Product Detail

Product Tags

TC2-HG10-30DCR-R CFP2 receivers are designed for use in 100 Gigabit Ethernet links over 10km single module fiber, and it compliant to the CFP2 MSA and IEEE 802.3ba 100GBASE-LR4. Digital diagnostics are available via MDIO as specified in the CFP2 MSA Management Interface Specification. The module’s designs are optimized for high performance and cost efficiency to provide customers the best solutions for Datacom and Telecom applications. The transceiver is RoHS-6 compliant and lead-free per Directive 2002/95/EC.

More Details

Part No. Package Fiber Type Data Rate Wavelength Optical Components  Distance Connector Temperature range DDMI Application Data Sheet
TC2-HG10-31DCR-R CFP2 SMF 112G LAN-WDM DML 10KM LC -5~70℃ Y 100GBASE LR4 DS180016

Product Features
3.3V Power supply and MDIO management interface for digital diagnostics
Integrated 4-LAN WDM ROSA for up to 10km link over G.652 SMF
LC Connector Interface
Operating data rate at 103.12Gps or 112Gbps
Hot-pluggable CFP2 MSA package
power consumption less than 3W

Compliant Standard
MSA- CFP2 Specification compliant
Operating Case Temperature:0℃ ~+70℃
Product Safety and Quality
FCC TUV UL and Eye safety certification
ISO9001:2000
ISO14001:2004

Applications
100GBASE LR4 Ethernet
OTU4 4I1-9D1F
